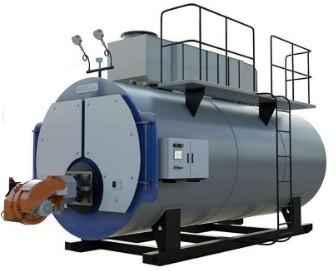

Horizontal Industrial Steam Generator Fire Tube Natural Circulation
Product Features:
1. WNS series oil fired boiler adopts the boiler structure of three passes fully wet back technology.
2. The design of furnace heat transfer and flue gas tube radiation heat transfer is reasonable, the boiler layout is reasonable, and the thermal efficiency is high.
3. The water capacity of the boiler is larger, and the whole radiation heat transfer and heat exchange technology is adopted, which is especially suitable for medium and large boilers.
4. The furnace adopts a unique combustion chamber layout, the whole combustion chamber is located in the center of the boiler water, making full use of radiation heat transfer to heat the boiler water, and the corrugated furnace is used as the combustion chamber so that the combustion is full, the heat exchange is more full, and the thermal efficiency of the boiler is higher.
5. The design of the furnace heating surface is simplified, with a larger heating area, smaller stress, more stability, and higher thermal efficiency.
Technical Parameter
| Boiler Model |
SZL2-1.25-T |
SZL4-1.25-T |
SZL6-1.25-T |
SZL8-1.25-T |
SZL10-1.25-T |
SZL12-1.25-T |
SZL15-1.25-T |
SZL20-1.25-T |
| Rated steam capacity(T/H) |
2 |
4 |
6 |
8 |
10 |
12 |
15 |
20 |
| Rated steam pressure(Mpa) |
1.25/1.6/2.5/3.82 |
| Rated steam temperature(℃) |
194/204/226/450 |
| Feed water temperature(℃) |
20/104 |
| Boiler water volume(m3) |
6.76 |
5.1 |
8.4 |
9.4 |
8.35 |
12.8 |
15.2 |
15.5 |
| Thermal efficiency(%) |
83.13 |
84.23 |
84.81 |
85.02 |
86.2 |
86.56 |
86.29 |
86.8 |
| Exhaust gas temperature(℃) |
130.67 |
142 |
142 |
149.15 |
152.7 |
148.7 |
149.86 |
147.4 |
| Fuel type |
Soft coal,Firewood,Rice Busk,Palm Shell and the other Biomass Fuels |
| Fuel consumption(Kg/h) |
385.8 |
807 |
1209 |
1563.94 |
2149.3 |
2399.7 |
2568.4 |
4266.9 |
| Max transportation weight(t) |
22 |
29 |
34 |
40.5 |
24 |
37 |
24.7 |
25.973 |
